Creating Dynamic CSS Menu From Database SQL Server in ASP.Net Using C#.Net/VB.NET

Hi friends,in this article I will explain about How to Create Dynamic menu is one of the most important parts if a website development. So today I will show you how you can create dynamic css menu with database(SQL Server using in ASP.NET using CSS.
First we will search for the menu which we want to implement dynamically.
After this we will create table in which we will add the menu item detail. In this article I have used two table one for parent and other for child table. In this child table contains the reference of parent table.
DBScript:
CREATE TABLE Parent_Menu (
  ID int IDENTITY,
  ParentMenu_Name varchar(50),
  ParentMenu_URL varchar(150)
)

CREATE TABLE Child_Menu (
  ID int IDENTITY,
  Parent_ID int,
  ChildMenu_Name varchar(50),
  ChildMenu_URL varchar(150)
)

INSERT INTO Parent_Menu (ParentMenu_Name, ParentMenu_URL)
  VALUES ('Home', '#')
INSERT INTO Parent_Menu (ParentMenu_Name, ParentMenu_URL)
  VALUES ('Technology', '#')
INSERT INTO Parent_Menu (ParentMenu_Name, ParentMenu_URL)
  VALUES ('Contact US', '#')

INSERT INTO Child_Menu (Parent_ID, ChildMenu_Name, ChildMenu_URL)
  VALUES (1, 'Home', '~/Home.aspx')
INSERT INTO Child_Menu (Parent_ID, ChildMenu_Name, ChildMenu_URL)
  VALUES (2, 'ASP.NET', '~/Asp_Net.aspx')
INSERT INTO Child_Menu (Parent_ID, ChildMenu_Name, ChildMenu_URL)
  VALUES (2, 'C#', '~/CSharp.aspx')
INSERT INTO Child_Menu (Parent_ID, ChildMenu_Name, ChildMenu_URL)
  VALUES (2, 'MVC', '~/MVC.aspx')

ASP.NET:
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>Creating Dynamic CSS Menu From Database SQL Server in ASP.Net Using C#.Net/VB.NET
    </title>
    <style type="text/css">
        .ParentMenu
        {
            font-size: small;
            font-family: Tahoma;
            font-weight: bold;
            padding-left: 6px;
            padding-right: 6px;
            text-align: center;
            background-color: #8B008B;
            color: White;
            border: 1px solid black;
        }

        .ParentMenu:hover
        {
            font-family: Tahoma;
            font-weight: bold;
            padding-left: 6px;
            padding-right: 6px;
            text-align: center;
            border: 1px solid black;
            font-size: small;
        }

        .ChildMenu
        {
            background-color: #8B008B;
            font-weight: bold;
            font-family: Tahoma;
            padding-top: 4px;
            padding-bottom: 4px;
            padding-right: 5px;
            padding-left: 5px;
            text-align: left;
            font-size: small;
            color: White;
            border: 1px solid black;
        }
        .ChildMenu:hover
        {
            font-weight: bold;
            font-family: Tahoma;
            padding-top: 4px;
            padding-bottom: 4px;
            padding-right: 6px;
            padding-left: 6px;
            text-align: left;
            font-size: small;
            border: 1px solid black;
            background-color: Black;
        }
    </style>
</head>
<body>
    <form id="form1" runat="server">
    <div>
        <asp:Menu DynamicSelectedStyle-Font-Italic="true" ID="dynamicMENU" runat="server"
            Orientation="Horizontal" DynamicVerticalOffset="4" OnMenuItemClick="dynamicMENU_MenuItemClick">
            <StaticMenuItemStyle Width="100" CssClass="ParentMenu" />
            <DynamicMenuItemStyle Width="250" CssClass="ChildMenu" />
        </asp:Menu>
    </div>
    </form>
</body>
</html>

C#.NET:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Configuration;
using System.Data.SqlClient;

public partial class DynamicCSSMenu : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            GetMenu();
        }
    }

    public void GetMenu()
    {
        DataSet dsParentMenu = getPARENTMENU();
        DataRowCollection drcParentMenu = dsParentMenu.Tables[0].Rows;
        DataSet dsChildMenuAll = getCHILDMENU();
        DataTable drcChildMenuAll = dsChildMenuAll.Tables[0];

        MenuItem mainMENUITEM;
        MenuItem childMENUITEM;
        foreach (DataRow drParentMenu in drcParentMenu)
        {
            mainMENUITEM = new MenuItem(drParentMenu["ParentMenu_Name"].ToString());
            dynamicMENU.Items.Add(mainMENUITEM);
            DataRow[] drcChildMenu = drcChildMenuAll.Select("Parent_ID=" + "'" + drParentMenu["ID"].ToString() + "'");
            foreach (DataRow drSUBMENUITEM in drcChildMenu)
            {
                childMENUITEM = new MenuItem(drSUBMENUITEM["ChildMenu_Name"].ToString());
                mainMENUITEM.ChildItems.Add(childMENUITEM);

                childMENUITEM.NavigateUrl = drSUBMENUITEM["ChildMenu_URL"].ToString();
            }
        }
        mainMENUITEM = new MenuItem("Logout");
        dynamicMENU.Items.Add(mainMENUITEM);
    }

    public DataSet getPARENTMENU()
    {
        SqlConnection myConnection = new SqlConnection(System.Configuration.ConfigurationManager.ConnectionStrings["con"].ToString());
        string str_query = string.Empty;
        str_query = "SELECT * FROM Parent_Menu";
        SqlDataAdapter daPARENT = new SqlDataAdapter(str_query, myConnection);
        DataSet dsTEMP = new DataSet();
        daPARENT.Fill(dsTEMP, "tablePARENT");
        return dsTEMP;
    }

    public DataSet getCHILDMENU()
    {
        SqlConnection myConnection = new SqlConnection(System.Configuration.ConfigurationManager.ConnectionStrings["con"].ToString());
        string str_querychild = string.Empty;
        str_querychild = "SELECT * FROM Child_Menu";
        SqlDataAdapter daCHILD = new SqlDataAdapter(str_querychild, myConnection);
        DataSet dsTEMP = new DataSet();
        daCHILD.Fill(dsTEMP, "tableCHILD");
        return dsTEMP;
    }
    protected void dynamicMENU_MenuItemClick(object sender, MenuEventArgs e)
    {
        Response.Redirect("~/index.aspx");
    }
}

VB.NET:
Imports System.Collections.Generic
Imports System.Linq
Imports System.Web
Imports System.Web.UI
Imports System.Web.UI.WebControls
Imports System.Data
Imports System.Configuration
Imports System.Data.SqlClient

Partial Public Class DynamicCSSMenu
    Inherits System.Web.UI.Page
    Protected Sub Page_Load(sender As Object, e As EventArgs)
        If Not IsPostBack Then
            GetMenu()
        End If
    End Sub

    Public Sub GetMenu()
        Dim dsParentMenu As DataSet = getPARENTMENU()
        Dim drcParentMenu As DataRowCollection = dsParentMenu.Tables(0).Rows
        Dim dsChildMenuAll As DataSet = getCHILDMENU()
        Dim drcChildMenuAll As DataTable = dsChildMenuAll.Tables(0)

        Dim mainMENUITEM As MenuItem
        Dim childMENUITEM As MenuItem
        For Each drParentMenu As DataRow In drcParentMenu
            mainMENUITEM = New MenuItem(drParentMenu("ParentMenu_Name").ToString())
            dynamicMENU.Items.Add(mainMENUITEM)
            Dim drcChildMenu As DataRow() = drcChildMenuAll.[Select]("Parent_ID=" + "'" + drParentMenu("ID").ToString() + "'")
            For Each drSUBMENUITEM As DataRow In drcChildMenu
                childMENUITEM = New MenuItem(drSUBMENUITEM("ChildMenu_Name").ToString())
                mainMENUITEM.ChildItems.Add(childMENUITEM)

                childMENUITEM.NavigateUrl = drSUBMENUITEM("ChildMenu_URL").ToString()
            Next
        Next
        mainMENUITEM = New MenuItem("Logout")
        dynamicMENU.Items.Add(mainMENUITEM)
    End Sub

    Public Function getPARENTMENU() As DataSet
        Dim myConnection As New SqlConnection(System.Configuration.ConfigurationManager.ConnectionStrings("con").ToString())
        Dim str_query As String = String.Empty
        str_query = "SELECT * FROM Parent_Menu"
        Dim daPARENT As New SqlDataAdapter(str_query, myConnection)
        Dim dsTEMP As New DataSet()
        daPARENT.Fill(dsTEMP, "tablePARENT")
        Return dsTEMP
    End Function

    Public Function getCHILDMENU() As DataSet
        Dim myConnection As New SqlConnection(System.Configuration.ConfigurationManager.ConnectionStrings("con").ToString())
        Dim str_querychild As String = String.Empty
        str_querychild = "SELECT * FROM Child_Menu"
        Dim daCHILD As New SqlDataAdapter(str_querychild, myConnection)
        Dim dsTEMP As New DataSet()
        daCHILD.Fill(dsTEMP, "tableCHILD")
        Return dsTEMP
    End Function
    Protected Sub dynamicMENU_MenuItemClick(sender As Object, e As MenuEventArgs)
        Response.Redirect("~/index.aspx")
    End Sub
End Class

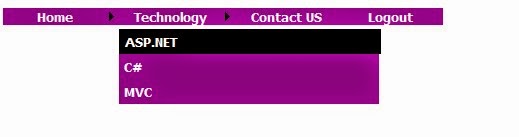

The output of the above code as shown in the below figure.

You can download the code by clicking on the below Download image.
