How to Wrap the data of a Particular Column in GridView || Word Wrap for GridView columns

Hi Friends,in this article i will explain about How to Wrap the data of a Particular Column in GridView or Word Wrap for GridView columns.
I already explained in the previous articles about How to Maintain selected Checkboxes state while paging in GridView?,Filter and Sorting in GridView using DataView in ASP.NET using C#/VB.NET and Maintain The State Of Checkbox After Postback (Inside GridView)
Write the following code in ASP.NET
<html xmlns="">
<head runat="server">
    <title>How to Wrap the data of a Particular Column in GridView || Word Wrap for GridView columns</title>
    <style type="text/css">
            word-break: break-all;
    <form id="form1" runat="server">
        <asp:GridView ID="GridWrap" runat="server" DataKeyNames="User_ID" AutoGenerateColumns="False"
            BackColor="White" BorderColor="#CC9966" BorderStyle="Solid" BorderWidth="1px" CssClass="WordWrap"
            CellPadding="4" Font-Names="Georgia" Font-Size="Small" Width="650px" AllowPaging="true">
                <asp:TemplateField HeaderText="User ID">
                        <%#Eval("User_ID") %>
                    <ItemStyle Width="100px" />
                <asp:TemplateField HeaderText="User Name">
                        <%#Eval("Username") %>
                    <ItemStyle Width="100px" />
                <asp:TemplateField HeaderText="Numbers">
                        <%#Eval("Numbers") %>
                    <ItemStyle Width="100px" />
                <asp:TemplateField HeaderText="Gender">
                    <ItemStyle Width="100px" />
                <asp:TemplateField HeaderText="Country">
                    <ItemStyle Width="100px" />
            <AlternatingRowStyle BackColor="#E6E6E1" />
            <HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="#FFFFCC" />

In C#:
using System.Data;
using System.Data.SqlClient;
using System.Configuration;

public partial class WrapGrid : System.Web.UI.Page
    protected void Page_Load(object sender, EventArgs e)
        SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["con"].ConnectionString);
        SqlCommand cmd = new SqlCommand("Select * from user_details", con);
        SqlDataAdapter da = new SqlDataAdapter(cmd);
        DataSet ds = new DataSet();
        GridWrap.DataSource = ds;

Imports System.Data
Imports System.Data.SqlClient
Imports System.Configuration

Partial Public Class WrapGrid
    Inherits System.Web.UI.Page
    Protected Sub Page_Load(sender As Object, e As EventArgs)
        Dim con As New SqlConnection(ConfigurationManager.ConnectionStrings("con").ConnectionString)
        Dim cmd As New SqlCommand("Select * from user_details", con)
        Dim da As New SqlDataAdapter(cmd)
        Dim ds As New DataSet()
        GridWrap.DataSource = ds
    End Sub
End Class

If you want to give the Wrap for particular column add the below event to Gridview in ASP.NET
and write the following code in code behind.
  protected void GridWrap_RowDataBound(object sender, GridViewRowEventArgs e)
        if (e.Row.RowType == DataControlRowType.DataRow)
Protected Sub GridWrap_RowDataBound(sender As Object, e As GridViewRowEventArgs)
    If e.Row.RowType = DataControlRowType.DataRow Then

        e.Row.Cells(2).Attributes.Add("Style", "word-break:break-all")
    End If
End Sub

The output of the above program as shown in the below images.

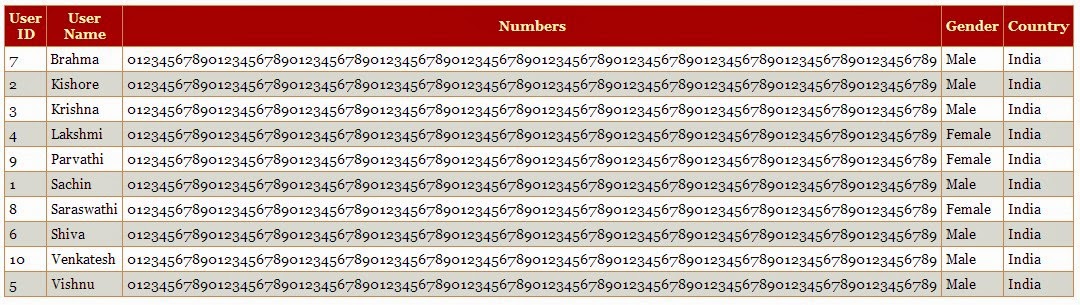

Before Wraping:

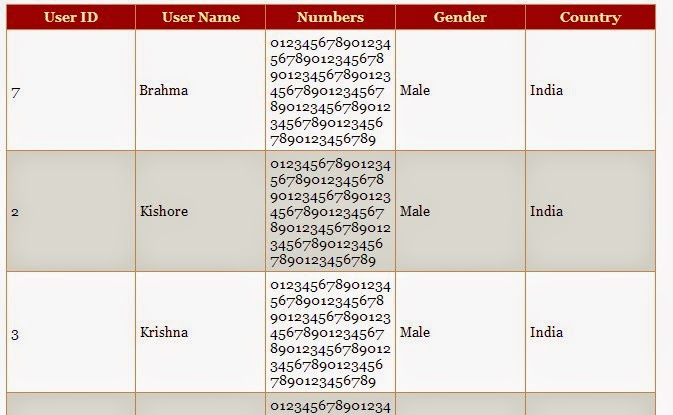

After Wraping:

You can download the code by clicking on the below Download image.
